What to Include in a Software Architecture Document?

If you're building any kind of software—whether it's a web app, an internal tool, or a distributed enterprise system—having a well-documented software architecture is non-negotiable. A solid architecture document helps teams stay aligned, ensures technical decisions are communicated clearly, and makes onboarding easier for new developers.

This article outlines the essential elements to include in a software architecture document, with real-world context and useful insights for both startups and enterprises. Structuring modern applications well often begins with thoughtful full-stack planning, where architecture decisions affect everything from how components interact to how data moves across the system.

1. System Overview

Start your document with a clear summary of the system you’re building. It doesn’t need to be overly technical here—the goal is to create shared understanding across both technical and non-technical stakeholders.

What to Include:

• Purpose of the system

• Primary users or user groups

• Core functionality or modules

• Any unique constraints (e.g., offline mode, real-time processing)

Think of this like the "elevator pitch" for your software. If someone skims only one section, this should be it.

2. Architectural Goals and Principles

Before you dive into diagrams or tech stacks, define the architectural principles that guide decisions. This serves as the "north star" throughout the development lifecycle.

Consider covering:

• Scalability requirements (e.g., support 10k concurrent users)

• Performance targets (e.g., <200ms API response time)

• Security goals (e.g., role-based access control)

• Maintainability and modularity

• Compliance needs (e.g., GDPR, HIPAA)

Writing these down early prevents future debates and helps justify design trade-offs.

3. System Context Diagram

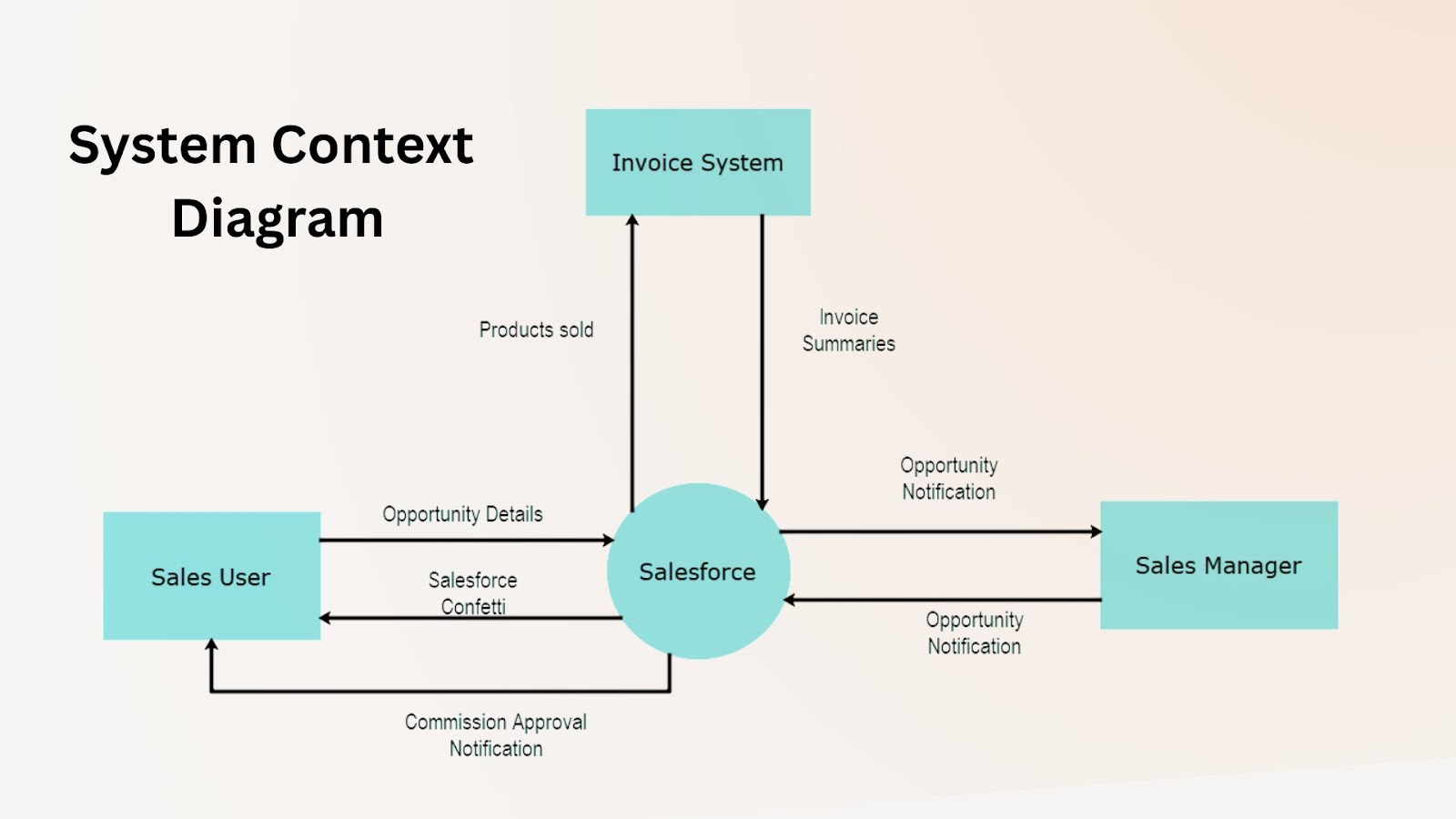

A picture is worth a thousand words, especially in software design. A system context diagram shows how your software interacts with external systems, databases, third-party APIs, and users.

Tips for this section:

• Use simple boxes and arrows (no UML needed)

• Clearly label external actors (e.g., mobile app, payment gateway)

• Show major internal modules, but keep it high-level

This helps stakeholders and engineers understand the big picture at a glance.

4. Component Model and Layered Architecture

Now it’s time to dig deeper into the internal structure. A component model or layered view helps communicate how the system is split into logical units.

Include:

• Description of each component (e.g., authentication service, order processor)

• How components interact

• Technology choices (e.g., Node.js, Redis, PostgreSQL)

Understanding how backend components interact—from data persistence layers to authentication services—is central to designing scalable systems. Backend development often involves organizing microservices, managing asynchronous workflows, and ensuring secure data flows, all of which directly influence how components are architected and maintained.

This section is where teams align on what gets built where and who owns what.

5. Data Models and Database Design

Your architecture isn’t complete without addressing how data is structured, stored, and accessed. Use this section to include:

• ER diagrams or schema diagrams

• Data flow examples

• Key tables and relationships

• Normalization and indexing strategies

Also consider mentioning caching mechanisms (e.g., Redis) and any use of NoSQL or search databases.

Tip: If your app handles large-scale reads, mention pagination and indexing strategies for scalability.

6. API Design and Integration Points

In the age of microservices and SaaS platforms, your software likely talks to other services. Your architecture document should outline key API integrations:

What to capture:

• REST vs. GraphQL (and why you chose it)

• Authentication method (e.g., OAuth 2.0, API keys)

• Rate limits and expected payload sizes

• Third-party integrations (e.g., Stripe, Twilio)

Also include examples of common requests/responses to help future developers.

7. Deployment Architecture

Documenting how your system moves from development to production is crucial. This section typically includes:

• CI/CD pipeline overview

• Environments (dev, staging, production)

• Containerization strategy (e.g., Docker, Kubernetes)

• Cloud providers and regions

We’ve written about containerized deployments in our post on CI/CD setup with GitHub Actions.

8. Security Architecture

Security should be integrated from day one. This section can include:

• Authentication/authorization flow

• Data encryption (at rest and in transit)

• Role-based access control (RBAC)

• Known security risks and mitigations

Include diagrams of how traffic is encrypted or filtered by firewalls/gateways.

9. Performance and Scalability Considerations

This is where you show that your architecture isn’t just functional—it’s ready for growth.

Topics to cover:

• Load balancing strategy

• Caching layers (frontend + backend)

• Database read/write strategies

• Auto-scaling policies

• Rate limiting techniques

Fact: According to Google, 53% of mobile users abandon sites that take longer than 3 seconds to load. Planning for performance is critical.

10. Monitoring and Logging

Software doesn’t end at deployment. Monitoring and observability ensure you know when something breaks and why.

Include:

• Logging structure (e.g., structured vs. unstructured)

• Metrics collected (e.g., latency, error rate)

• Tools used (e.g., Datadog, ELK, Prometheus)

• Alerting setup (e.g., Slack + PagerDuty notifications)

Think of this as your early warning system.

11. Assumptions and Constraints

No architecture lives in a vacuum. Documenting your assumptions ensures future developers understand why certain decisions were made.

Examples:

• "We assume the app will only support Chrome and Safari initially."

• "Budget limits require using open-source tools."

This section also helps explain shortcuts or technical debt.

12. Glossary and References

A good architecture document is accessible to both engineers and stakeholders. Define acronyms, technologies, and terms.

Also, include links to:

• API docs

• Third-party services

• Relevant GitHub repos

• Earlier architecture discussions or whiteboard sessions

Final Thoughts: A Living Document

A software architecture document isn’t something you write once and forget. It evolves with the system. Keep it under version control and update it as architecture decisions shift.

A well-written document not only guides current development but also protects future teams from having to reverse-engineer your logic. It creates continuity and clarity.

And if you're building full-stack platforms or modern applications, architecture planning is the foundation. You can see how we approach scalable designs in our full-stack development process.
